C-10A Motorized Refraction Unit
Touch control with four stored patient-height positions
A three-axis powered refraction workstation: the chair, the swing arm and the main unit each adjust independently. A touch panel stores four patient-height presets (1.0, 1.2, 1.5 and 1.7 m) so the matching combination can be recalled in one action. A backup switch on the main unit and a dual-screen backup design keep the unit usable if one control surface fails.
Features
What this model does.
- Independent powered adjustment for chair, swing arm and main unit
- Touch panel with four stored patient-height positions: 1.0 / 1.2 / 1.5 / 1.7 m
- Backup switch on the main unit; dual-screen backup design
- Tabletop rotates open through 90°

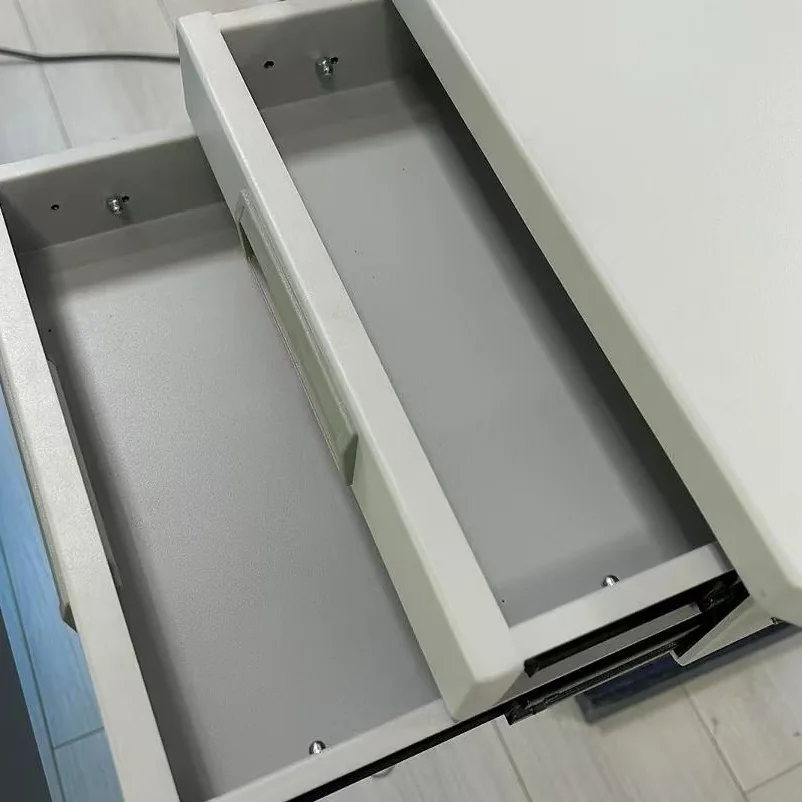

- Three drawers: one large front drawer and two smaller side drawers
Specifications
Specifications.
Dimensions and ratings for the standard configuration. Anything not listed here is confirmed on the quotation rather than estimated.
| Tabletop dimensions | 1010 × 480 mm |
|---|---|
| Unit dimensions | 1050 × 1300 × 1550 mm |
| Installation footprint | 1300 × 1300 mm |
| Tabletop height range | 680–830 mm |
| Swing-arm height range | 1300–1550 mm |
| Stored positions | Four patient-height presets: 1.0 / 1.2 / 1.5 / 1.7 m |
| Seat height | 500–680 mm |
| Drawer internal size | 530 × 380 × 65 mm |
| Power supply | 220 V / 50 Hz |
| Power / lighting | 3 W |
Detail
Closer views.

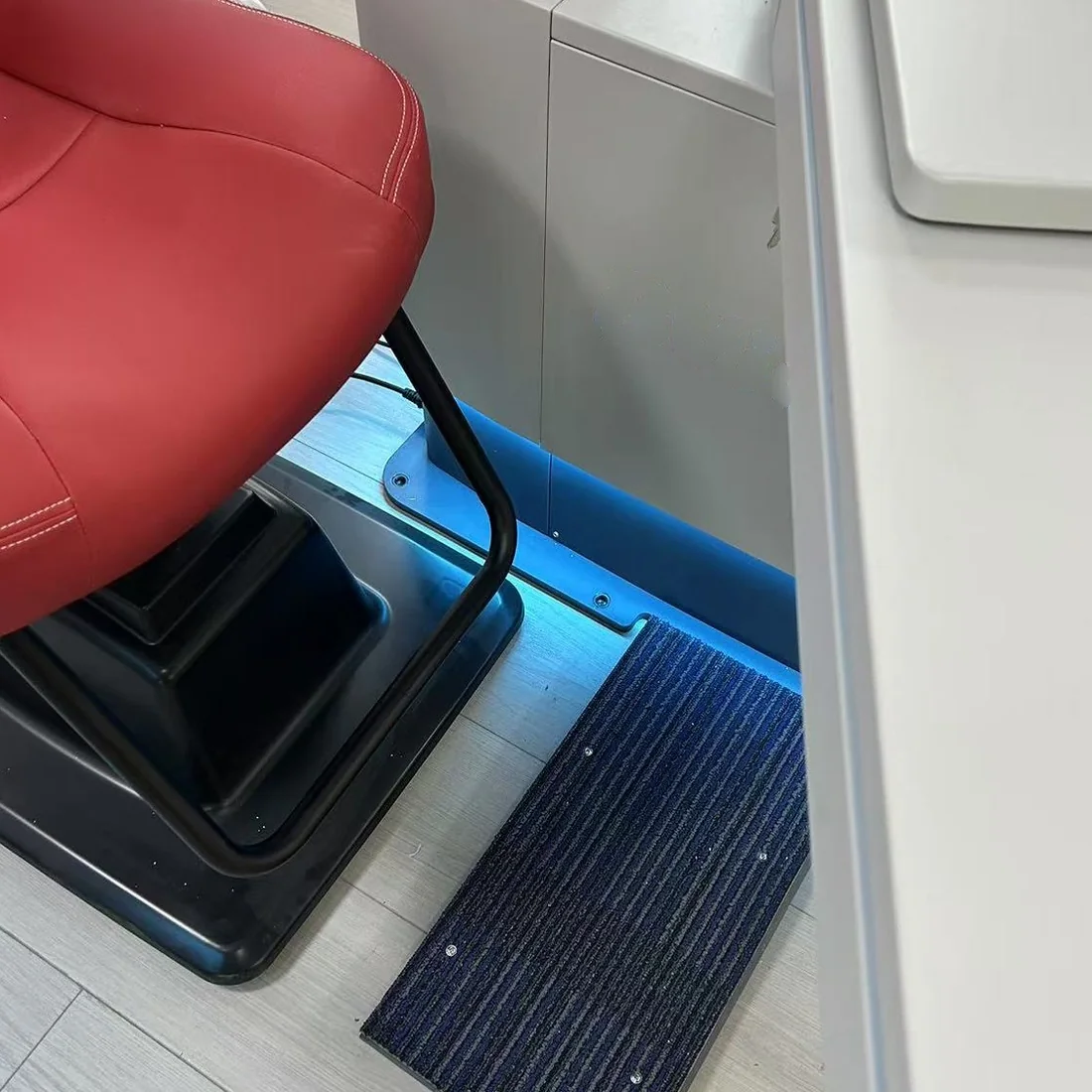

Photographs of this model. Diagnostic instruments shown in the photographs are not part of the furniture supply scope.
Supply scope
What is included.
Standard and optional items, plug type and voltage version are confirmed against the quotation.
Diagnostic instruments shown in product photography — phoropters, chart projectors, autorefractors — illustrate use and are not part of the furniture supply scope unless a quotation states otherwise.
Standard warranty is 12 months from delivery. Within that period ENOCH supplies the replacement parts needed for any fault not caused by misuse or accidental damage.
