C-800 Refraction Unit with Side Cabinet

Name: C-800
Brand: ENOCHTEC

Side cabinet with rotating auxiliary surface

A refraction station with a separate side cabinet and storage. The swing arm moves side to side, the instrument tray rotates through 120° and locks in position, and the chair both rotates and lifts under power.

Request a quotation All refraction units

Main image

With instruments

Workstation

Storage detail

2100 × 1200 × 1700 mm

Unit size

500–680 mm

Seat height

Features

What this model does.

Separate side cabinet with large-capacity storage
Swing arm moves side to side
Instrument tray rotates through 120° and self-locks in position
Rotating, powered lift chair for easy entry and exit
Centralised push-button control panel

Specifications

Specifications.

Dimensions and ratings for the standard configuration. Anything not listed here is confirmed on the quotation rather than estimated.

Secondary tabletop	480 × 430 × 30 mm
Unit dimensions	2100 × 1200 × 1700 mm
Swing-arm lift travel	200 mm
Seat height	500–680 mm
Drawer	550 × 330 × 50 mm
Power supply	220 V / 50 Hz
Power / lighting	3 W

Detail

Closer views.

Photographs of this model. Diagnostic instruments shown in the photographs are not part of the furniture supply scope.

C-800 — swing arm moving side to side — Swing arm, moving side to side.

C-800 — swing-arm height adjustment at the column joint — Swing-arm height adjustment at the column joint.

C-800 — instrument tabletop rotating and self-locking — Instrument tabletop: rotates and self-locks in position.

C-800 — patient chair seat rotating — Patient chair seat, rotating for entry and exit.

C-800 — powered chair column for seat-height adjustment — Powered chair column; seat height adjusts over 500–680 mm.

C-800 — centralised control panel on the cabinet side — Centralised control panel recessed into the cabinet side: power button, a lighting button and two groups of push-buttons.

Supply scope

What is included.

Standard and optional items, plug type and voltage version are confirmed against the quotation.

Diagnostic instruments shown in product photography — phoropters, chart projectors, autorefractors — illustrate use and are not part of the furniture supply scope unless a quotation states otherwise.

Standard warranty is 12 months from delivery. Within that period ENOCH supplies the replacement parts needed for any fault not caused by misuse or accidental damage.

Planning

How much one position carries.

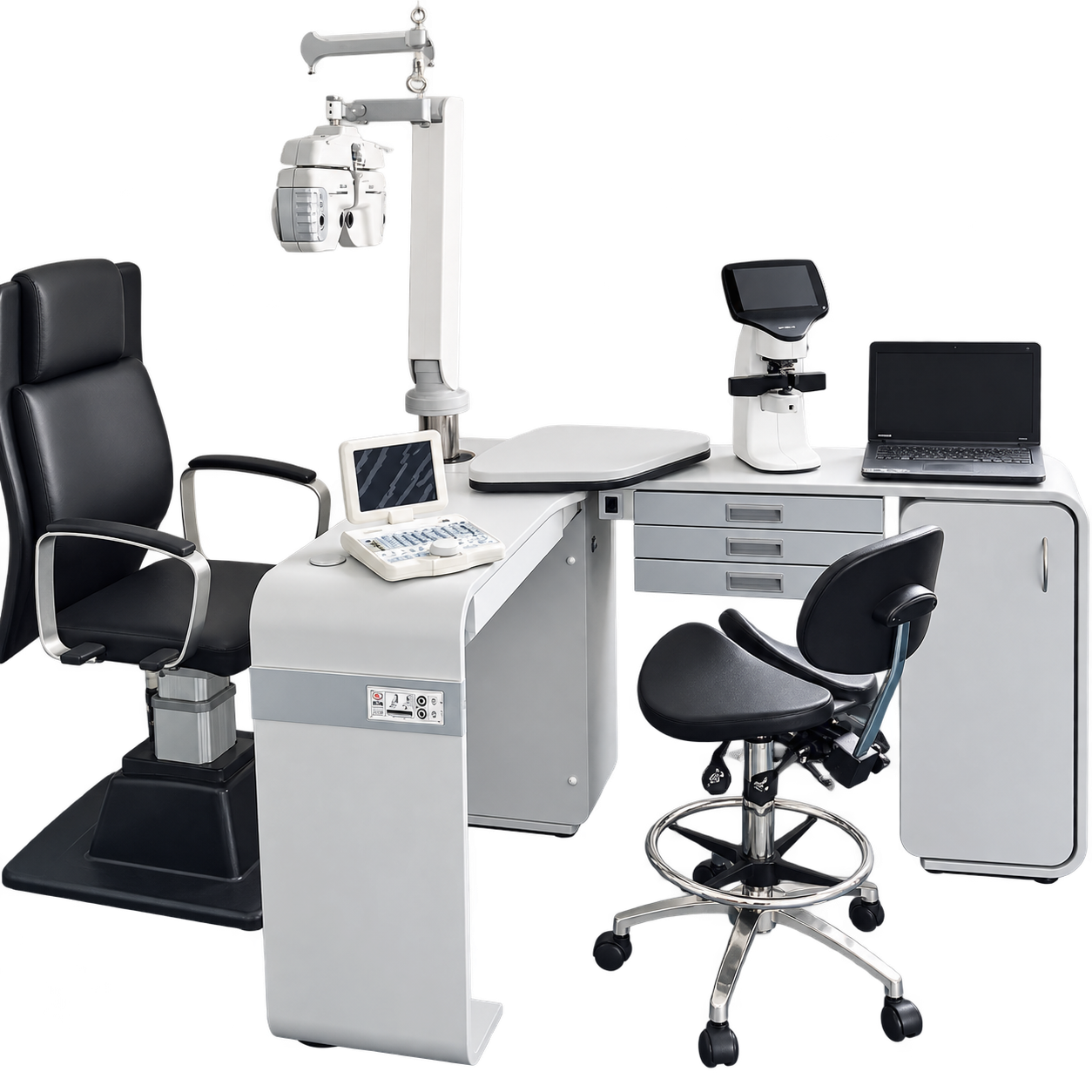

C-800 occupies 2100 × 1200 mm of floor and stands 1700 mm high, side cabinet included. The photograph shows one position fully equipped: a refractor head with its lamp on the balance arm, a keypad and two instrument displays on the stepped work surfaces, a notebook computer at the far end, and the 480 × 430 mm rotating tabletop still clear in front of the chair. Three drawers and the enclosed side cabinet hold the rest, which is what keeps the work surfaces usable. Instruments and computers shown in the photograph are not supplied.

C-800 refraction unit with side cabinet, installed and fully equipped, with chair — C-800 in service: refractor head on the balance arm, keypad and instrument displays on the work surfaces, notebook computer at the far end, rotating tabletop clear.
