Refraction Units
TG-1010 Refraction Unit with Drawer Storage
Tall column with vertical drawer storage
A column-type refraction unit with overhead illumination and a vertical drawer stack. The large tabletop rotates through 90°, the swing arm adjusts up and down, and the chair swivels left and right.
Features
What this model does.
- Tall column body with overhead illumination
- Vertical drawer stack alongside the unit
- Large tabletop rotates through 90°
- Up-down adjustment of the swing arm
- Chair swivels left and right
- 3 V / 6 V / 12 V AC outlets
Specifications
Specifications.
Dimensions and ratings for the standard configuration. Anything not listed here is confirmed on the quotation rather than estimated.
| Overall dimensions (L × W × H) | 2330 × 1300 × 2090 mm |
|---|---|
| Tabletop dimensions | 890 × 430 mm |
| Tabletop lift travel | 270 mm |
| Chair dimensions | 610 × 820 × 1510 mm |
| Chair travel | 150 mm |
| Drawer | 190 × 245 × 75 mm |
| Overall height | 2090 mm |
| Power supply | 220 V / 50 Hz |
| Power / lighting | Total power consumption 100 W |
Detail
Closer views.

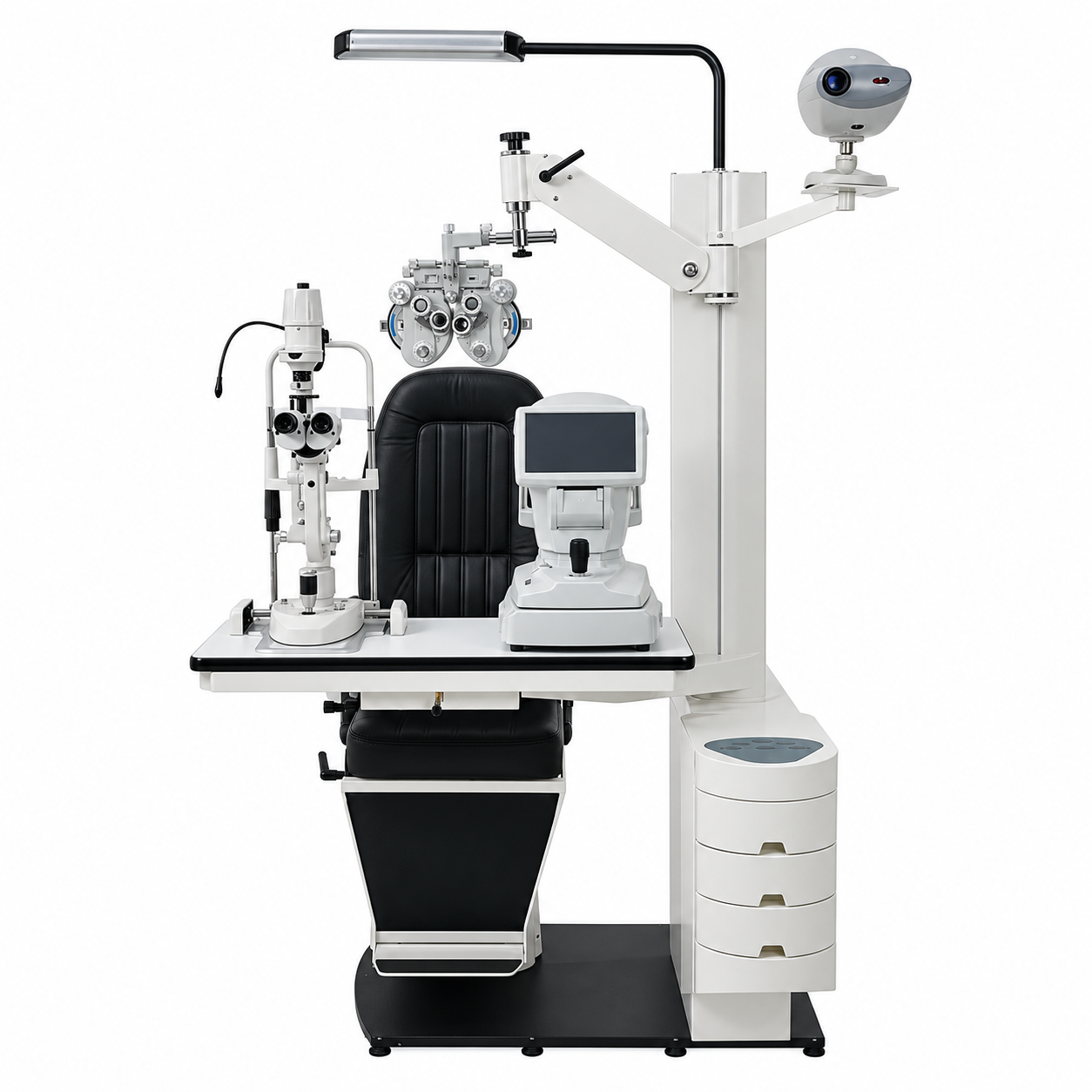

Photographs of this model. Diagnostic instruments shown in the photographs are not part of the furniture supply scope.
Supply scope
What is included.
Standard and optional items, plug type and voltage version are confirmed against the quotation. Packing dimensions: main unit 980 × 780 × 420 mm, tabletop 1150 × 600 × 270 mm, base plate 1150 × 830 × 830 mm, column 1860 × 260 × 230 mm; total gross weight 249 kg.
Diagnostic instruments shown in product photography illustrate use and are not part of the furniture supply scope unless a quotation states otherwise.
Standard warranty is 12 months from delivery. Within that period ENOCH supplies the replacement parts needed for any fault not caused by misuse or accidental damage.
