WB-3A Compact Instrument Table with Tool Tray
Smallest top, open tool tray
An electric ophthalmic table built around a single instrument. At 480 × 400 mm the top is the smallest in the ENOCH instrument-table range, for a refraction room where the table has to stand beside the chair rather than in front of it. An open tray under the right-hand edge of the top keeps tools and accessories in view instead of behind a drawer front — it is described as a drawer. The top travels 200 mm, from 630 to 830 mm, on a single powered column — the model is designated as an electric lift table, and the column carries that name in silkscreen. The specification lists the unit for both AC 220 V / 50 Hz and 110 V / 60 Hz.
Features
What this model does.
- 480 × 400 mm work surface on a single powered column — the smallest top in this range
- 200 mm powered stroke, 630 to 830 mm working height
- Up and down rocker switch on the front of the upper housing
- Open tray under the right-hand edge of the top for tools and accessories (it is described as a drawer)
- Power switch with a built-in fuse, and an auxiliary AC outlet beside it on the lower housing
- Specification lists both AC 220 V / 50 Hz and AC 110 V / 60 Hz
- Four swivel casters with brakes on a black steel H-base
- Light grey laminate top with a moulded black edge band, ivory column and housings
Specifications
Specifications.
Dimensions and ratings for the standard configuration. Anything not listed here is confirmed on the quotation rather than estimated.

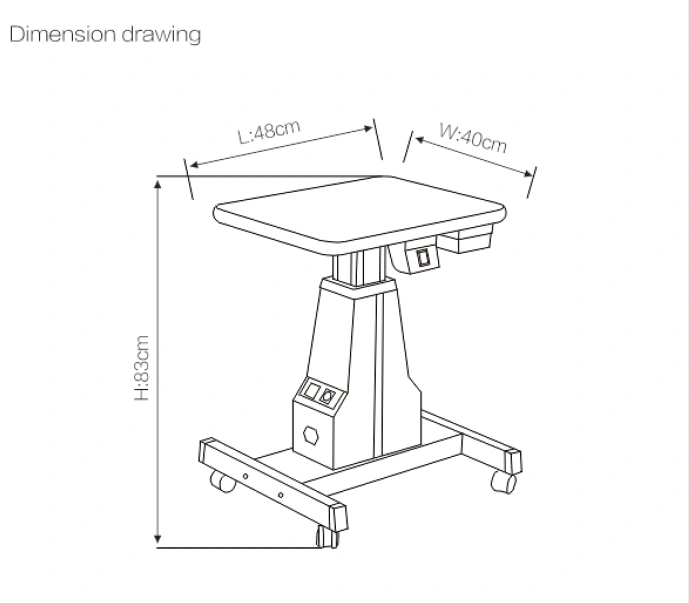

| Tabletop dimensions | 480 × 400 mm |
|---|---|
| Tabletop height range | 630–830 mm |
| Tabletop lift travel | 200 mm |
| Load capacity | 55 kg |
| Mains supply | AC 220 V / 50 Hz; AC 110 V / 60 Hz |
| Power consumption | 45 W |
Parts
Parts and controls.
Component names as labelled in the product documentation.
- 1Tabletop — 480 × 400 mm, light grey laminate with a moulded black edge band
- 2Open tool tray — open-topped tray under the right-hand edge of the top, no drawer front
- 3Lift switch — up and down rocker on the front of the upper housing
- 4Lift column — single powered column, 200 mm stroke
- 5Switch panel — auxiliary AC outlet and the power switch, which has a built-in fuse
- 6Mains inlet — appliance socket on the lower housing
- 7H-base and casters — four swivel casters with brakes on a black steel base
Detail

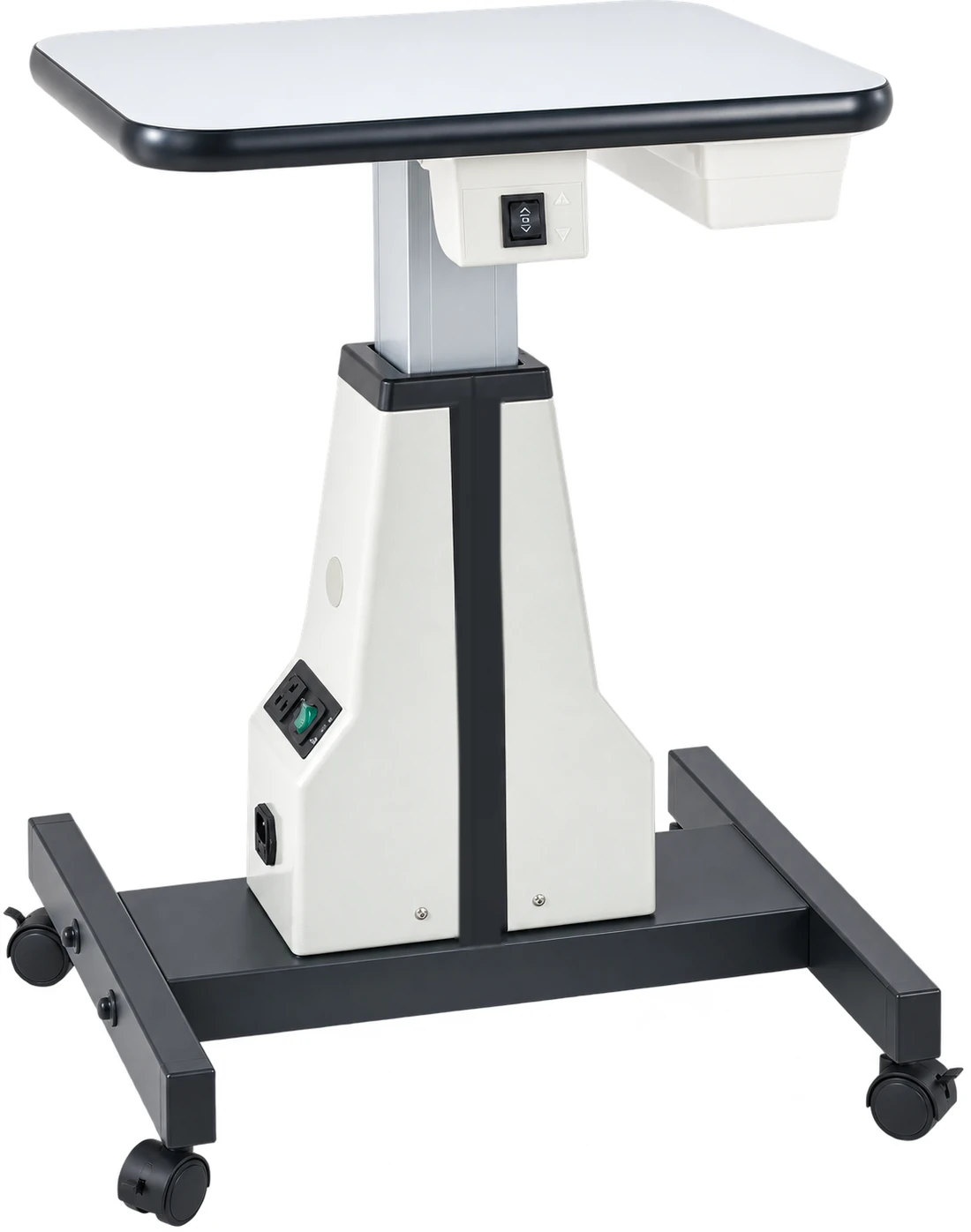

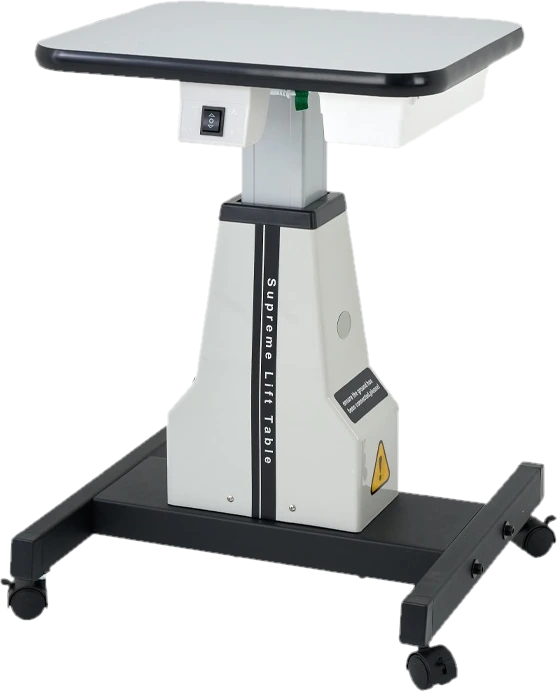

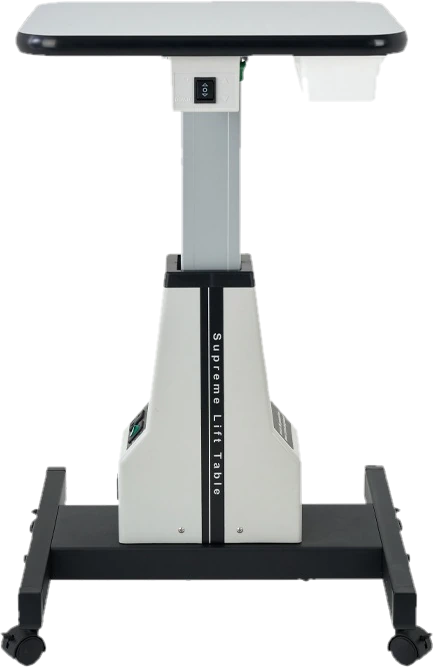

Closer views.
Photographs of this model. Diagnostic instruments and accessories shown in the photographs are not part of the furniture supply scope.
Supply scope
What is included.
Standard and optional items, plug type and voltage version are confirmed against the quotation. Shipping data for this model: main unit external dimensions 600 × 520 × 280 mm, gross weight 16.5 kg. Confirm the mains configuration for your country when ordering.
Diagnostic instruments shown in product photography illustrate use and are not part of the furniture supply scope unless a quotation states otherwise.
Standard warranty is 12 months from delivery. Within that period ENOCH supplies the replacement parts needed for any fault not caused by misuse or accidental damage.
