C-12 Refraction Unit with Powered Instrument Tray
Powered instrument tray with fold-away controls
A three-axis powered refraction workstation with a powered instrument tray and a control panel that folds away when not in use. The work surface rotates open through 90°, and four drawers — two large at the front, two smaller at the side — carry trial lens cases and tools.
Features
What this model does.
- Independent powered adjustment for chair, swing arm and main unit

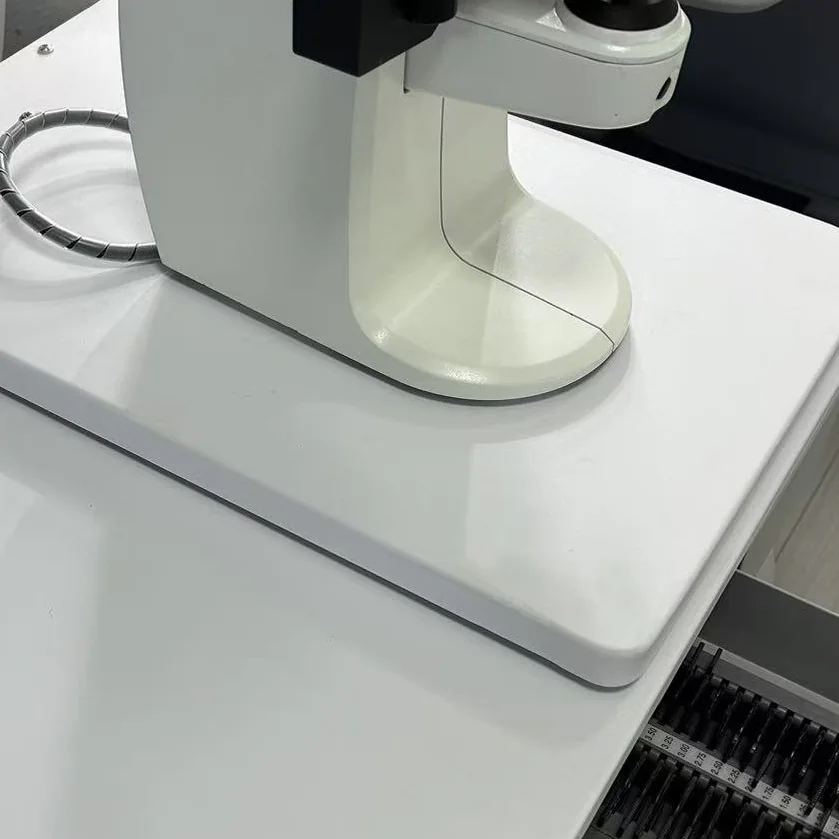

- Powered sliding instrument tray, single-action positioning
- Control panel folds away and conceals

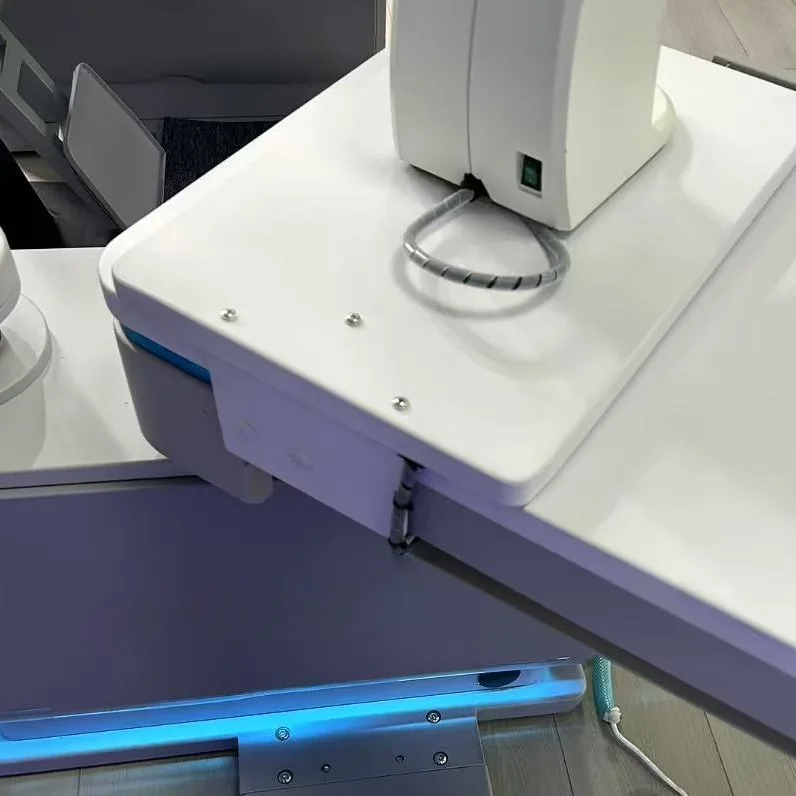

- Tabletop rotates open through 90°
- Four drawers: two large front, two smaller side
Specifications
Catalogue specifications.
Figures as published by the manufacturer. Fields the catalogue does not state are left out rather than estimated.
| Tabletop dimensions | 1070 × 490 mm |
|---|---|
| Unit dimensions | 1100 × 1300 × 1550 mm |
| Installation footprint | 1300 × 1300 mm |
| Tabletop height range | 720–870 mm |
| Swing-arm height range | 1260–1610 mm |

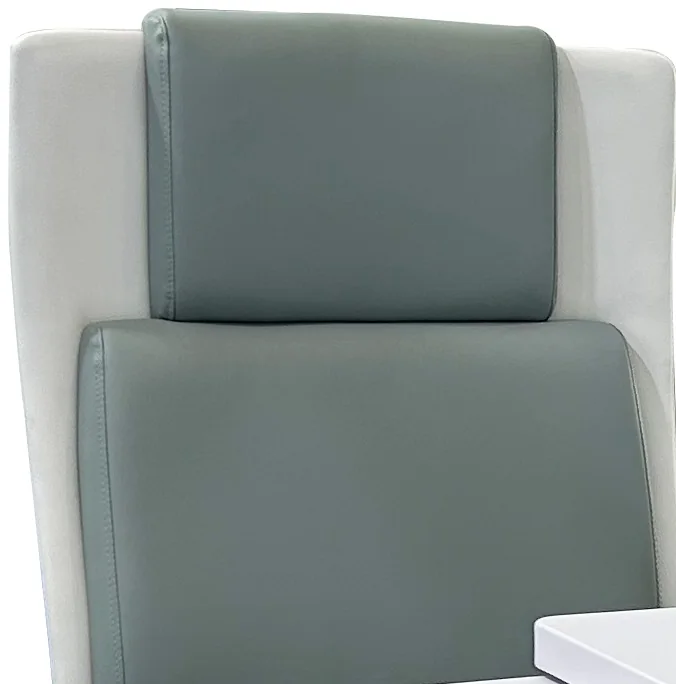

| Seat height | 500–680 mm |
| Drawer internal size | 540 × 340 × 55 mm |
| Power supply | 220 V / 50 Hz |
| Power / lighting | 3 W |
Supply scope
What is included.
Standard and optional items, plug type and voltage version are confirmed against the quotation.
Diagnostic instruments shown in product photography — phoropters, chart projectors, autorefractors — illustrate use and are not part of the furniture supply scope unless a quotation states otherwise.
Standard warranty is 12 months from delivery. Within that period ENOCH supplies the replacement parts needed for any fault not caused by misuse or accidental damage.
